Setting Up Encrypted Webhooks¶

1. Generate a Secret Key¶

Generate a secure 32-character secret key:

openssl rand -hex 16

This command generates a 32-character hexadecimal string representing 16 bytes of random data.

Example output:

3a7bd3e2360a3d29eea436e7242deb2e

Without a command line, a password manager such as 1Password or Bitwarden will generate one. Choose the random password type, set the length to 32 characters, and save the result in the same vault as the rest of your credentials. The value is generated in the app rather than on a server.

The RANDOM.ORG password generator is a further option and caps at 32 characters. The value is created on RANDOM.ORG's servers and sent to your browser, and RANDOM.ORG advises against using an online generator for highly sensitive values, so prefer one of the options above where you can.

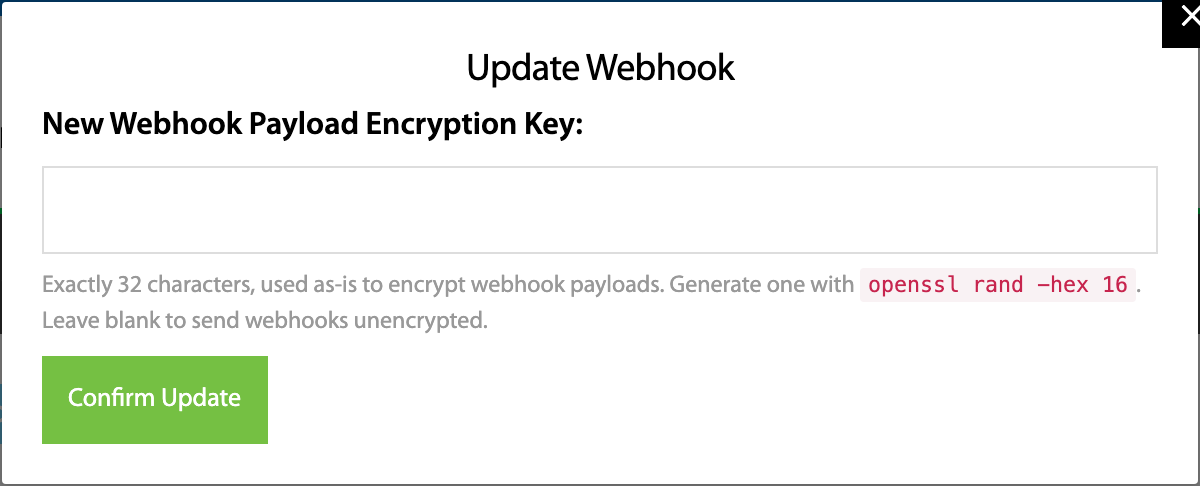

2. Set Up Secret Key in TAPI Portal¶

1. Log in to the TAPI Portal.
2. Go to Administrative > Update Webhook Encryption Key, or navigate directly to /admin_v3/index.php/client/administrative/updatewebhook.

3. Select Update Encryption Key. 4. Enter the generated secret key, all 32 characters from the previous step. The field accepts only a 32-character value.

5. Select Confirm Update.

This step ensures that TAPI will use this key to encrypt webhook payloads.

3. Node.js Server (Receiver) Setup¶

This example uses the Node.js crypto library. You can find more information on how to use this library at:\ https://nodejs.org/api/crypto.html

3.1 Store the Secret Key¶

Store the secret key securely on your Node.js server. For example, you might save it in an environment variable or a secure configuration file.

3.2 Decryption Function¶

Use the following Node.js function to decrypt incoming webhook payloads:

const crypto = require('crypto');

// Retrieve the secret key from your secure storage
const secretKey = process.env.WEBHOOK_SECRET_KEY; // or read from a secure config file

function decryptWebhookData(encryptedData) {
  const decodedData = Buffer.from(encryptedData, 'base64');

  const iv = decodedData.slice(0, 16);
  const encrypted = decodedData.slice(16);

  // Create decipher
  const decipher = crypto.createDecipheriv('aes-256-cbc', secretKey, iv);

  // Decrypt
  let decrypted = decipher.update(encrypted);
  decrypted = Buffer.concat([decrypted, decipher.final()]);

  // Parse the decrypted data
  const decodedString = decrypted.toString('utf8');
  const parsedData = {};
  decodedString.split(', ').forEach((pair) => {
    const [key, value] = pair.split('=');
    parsedData[key] = decodeURIComponent(value);
  });

  return parsedData;
}

3.3 Usage in Express.js¶

Set up a route to handle incoming webhooks:

const crypto = require('crypto');
const express = require('express');
const morgan = require('morgan');

const app = express();
const port = process.env.PORT || 3000;

app.use(morgan('combined'));
app.use(express.json());
app.use(express.urlencoded({ extended: true }));

const secretKey = process.env.WEBHOOK_SECRET_KEY;

function decryptWebhookData(encryptedData) {
  const decodedData = Buffer.from(encryptedData, 'base64');
  const iv = decodedData.slice(0, 16);
  const encrypted = decodedData.slice(16);

  // Create decipher
  const decipher = crypto.createDecipheriv('aes-256-cbc', secretKey, iv);

  // Decrypt
  let decrypted = decipher.update(encrypted);
  decrypted = Buffer.concat([decrypted, decipher.final()]);

  // Parse the decrypted data
  const decodedString = decrypted.toString('utf8');
  const parsedData = {};
  decodedString.split(', ').forEach((pair) => {
    const [key, value] = pair.split('=');
    parsedData[key] = decodeURIComponent(value);
  });

  return parsedData;
}

app.get('/', (req, res) => {
  console.log(req.params);
  res.send('Hello World!');
});

app.post('/', (req, res) => {
  console.log(req.body);

  const decryptedData = decryptWebhookData(req.body.params);
  console.log('Decrypted webhook data:', decryptedData);
  res.send('Received webhook!');
});

app.listen(port, () => {
  console.log(`Listening for webhooks on port ${port}`);
});

4. Security Considerations¶

• Keep the secret key confidential and secure.
• Use HTTPS for all webhook communications.
• Regularly rotate the secret key by generating a new one and updating it in both the TAPI Portal and your Node.js server.

5. Troubleshooting¶

If you encounter decryption errors:

• Ensure the secret key in your Node.js server matches the one entered in the TAPI Portal, character for character.
• Confirm the key is exactly 32 characters and is used as-is, without Base64-decoding or hashing it first.
• Verify that the encrypted data is being properly received and passed to the decryption function.
• Remove any code that substitutes plusencr before Base64-decoding.

6. Notes¶

• The TAPI Portal uses AES-256-CBC encryption for the webhooks.
• The first 16 bytes of the decoded data represent the Initialization Vector (IV).
• The encrypted payload is standard Base64, not the URL-safe alphabet.
• The delivery is a form post: Content-Type: application/x-www-form-urlencoded, with the payload in the params field.
• The decrypted data is in the format of a URL-encoded query string, separated by ', ' (comma and space).
